The TS-18, TS-19, TS-20 are push button controlled under desk/counter door releases for remote control of doors and access controls. Idea for front desk and reception or hard to wire areas that require discreet control of locking devices.
Standard Features
- TS-18 with momentary action switch
- TS-19 with one N/O and one N/C momentary action switch; can be used with either provided switch
- TS-20 with alternate action switch; can be used with either provided switch
- Black ABS plastic box with two mounting ears
- Surface mounted push button protected with 1" guard ring
- Depressing push button operates switch contacts
Options
- TS-18D with DPDT switch
- TS-20D with DPDT switch
Specifications
Dimensions:
- Enclosure: 1-1/2"H x 3"W x 3"L
Electrical:One N/O and one N/C contacts, rated 10A at 35 VDC or 120 VAC
Main Features
- Surface mounted push button protected with 1" guard ring
- Alternate Action Switch
- Depressing push button operates switch contacts
- Enclosure size: 1" H x 1-1/2" W x 2" L
General Information

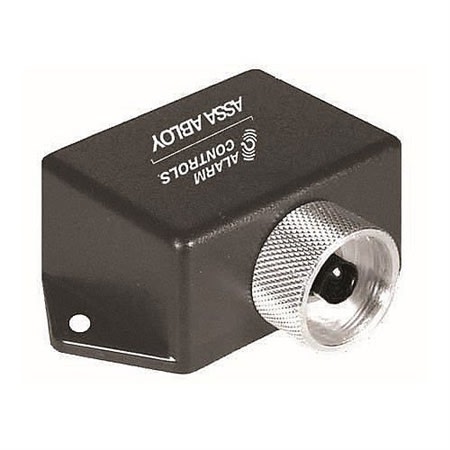

Name: Alarm Controls TS-20 Under Desk Door Release with Alternate Action Switch
Category: Alarm Controls by ASSA ABLOY, Access Control, Egress Devices, Door Release Buttons
UPC Code: 604840257893
Country of Origin: United States. Country of origin is subject to change.
