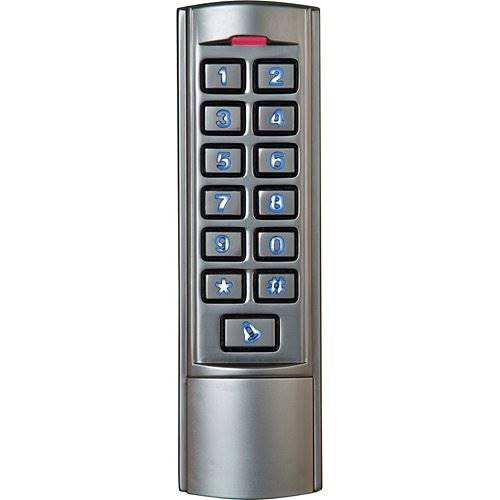

Camden CV-110SPK Slim-Line Stand Alone Prox Reader and Keypad, 1 Relay, 2,000 Users, (Replaces PR-3123-PQ)

Camden CV-110SPK is a slim-line single door multifunction standalone keypad that supports up to 2000 users with a Card, 4 digit PIN, or a Card + PIN option. The electronics are fully potted so the unit is waterproof and conforms to IP68. The built-in prox card reader supports 125KHZ EM cards and 13.56MHz Mifare cards. The CV-110SPK offers a 26 bit Wiegand input and output allows the unit to also operate as a dual credential (prox reader and keypad) access control system device.

Main Features

• Up to 2,000 users - cards or tags
• Backlit Keys
• Zinc Alloy electroplated anti-vandal construction
• Weatherproof, IP68 rating
• Fully programming from keypad
• Adjustable door output time, alarm time, door open time
• Low power consumption
• Anti-tampler, built-in light dependent resistor
• Look output short circuit protection
• 8 bit burst (keypad), 26 bit (reader) Wiegand output, for integration with access control systems

General Information

Name: Camden CV-110SPK Slim-Line Stand Alone Prox Reader and Keypad, Relay, 2,000 Users, (Replaces PR-3123-PQ)

Category: Camden Door Controls, Access Control, Keypads & Readers, Access Control Keypads

UPC Code: 670454181282

Country of Origin: China. Country of origin is subject to change.
