CDVI A22K-NB Atrium Encrypted Web-Based Door Controller, 2-Doors / 4-Readers

The A22K is ATRIUM’s encrypted web-based (https) door controller. Use your smartphone, tablet or any web-enabled device to easily manage the system over a secure connection in the office, at home or on the road. ATRIUM’s unique and effortless card enrollment mode minimizes system start up and simplifies your life.

What’s Included

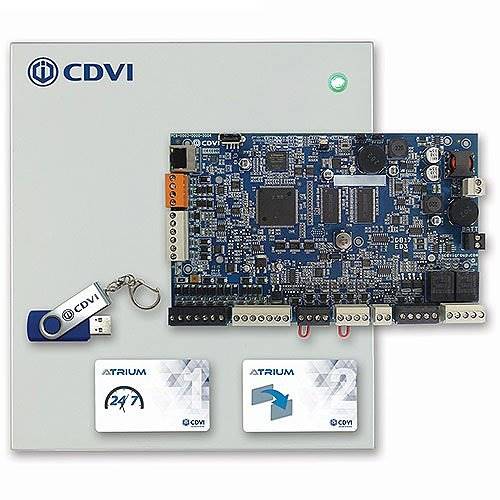

• A22K - Encrypted 2-Door / 4-Reader IP Controller
• Plug-in Power Supply

Main Features

• Controls 2 doors and 4 readers (Entry/Exit per reader port)
• Pre-assembled universal plug-in power supply (120V/240V)
• Convert any A22K door controller to an A22KEC elevator controller by simply updating the firmware for free (up to 256 floors)
• On-board Ethernet Port with AES 256-bit encryption
• On-board RS485 communication bus, 1220m (4000')
• Embedded secure HTTPS web server
• Auto-detect hardware modules
• Quick and easy card enrollment procedure
• Lock outputs: 2 (750 mA at 12 VDC/each)
• Relay Outputs: 2 Form C relays (Dry Contact) 5A at 250VAC, 7A at 125VAC, 7A at 30VDC

General Information

Name: CDVI A22K-NB Atrium Encrypted Web-Based Door Controller, 2-Doors 4-Readers

Category: CDVI, Access Control, Access Control Panels & Accessories, Access Control Panels

UPC Code: 804081187106

Country of Origin: Canada. Country of origin is subject to change.
