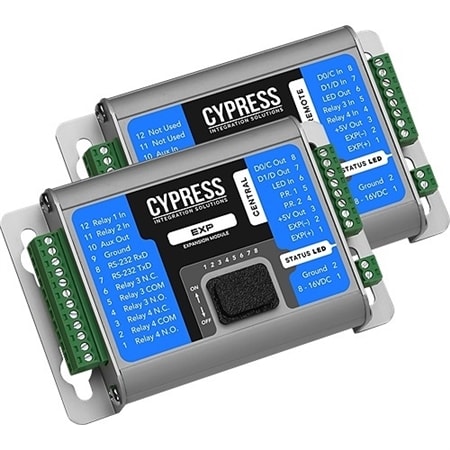

Cypress EXP-2000 Expansion Module Set for Suprex Reader-Extender with Door/Gate Inputs and Lock Control

Use with a Suprex Reader-Extender to support an additional reader and its associated I/O channels over a Suprex connection. Up to 7 EXP-2000 Expansion Module Sets may be used with each Suprex, allowing a total of 8 readers per Suprex.

The EXP-2000 Expansion Module Set is a pair of units; a Central Unit and a Remote unit. The Central Unit connects to the access control panel and the Suprex Central Unit, and the Remote Unit connects to the Reader and the Suprex Remote Unit.

Compatible with most Suprex Reader-Extender models, including SPX-5631, SPX-5641, SPX-7200, SPX-7400, SPX-7410, and SPX-7500.

What’s Included

Reader Expansion Module Set

Remote (Door/gate) Unit

Central (Panel) Units

Convenient Removable Connectors

Product Specification :

• Use with a Suprex Reader-Extender to support an additional reader and associated I/O channels over a Suprex connection
• Up to 7 EXP-2000 Expansion Module Sets may be used with each Suprex, allowing a total of 8 readers per Suprex
• Supported data interfaces:Wiegand,Wiegand keypad, Strobed, and unsupervised F/2F
• Supports up to 248 bits of credential data
• Supports LED and REX switch I/O
• Onboard relays for door strike / gate activation
• Not compatible with SPX-1300
• CE Certified
