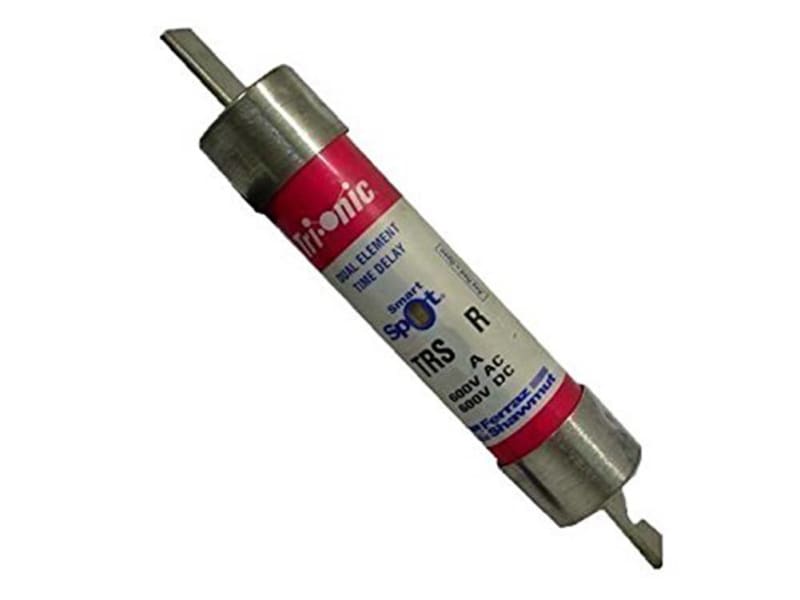

Ferraz Shawmut Tri-OniC ; Class RK5 Time-Delay Blade Fuse; 70 Amp, 600 V AC/DC

The Ferraz Shawmut Tri-OniC TRS Series Class RK5 time-delay fuse is designed to protect electrical circuits with a rating of 70 Amps for 600 VAC/600 VDC. It features a high interrupt rating of 200 Kilo-Amps AC and 20 Kilo-Amps DC, ensuring safe fault clearing in demanding environments. The fuse is constructed with a fiberglass body for enhanced dimensional stability, even in harsh industrial settings, and includes high-grade silica filler for efficient arc quenching and high current limitation. Its time-delay feature helps prevent nuisance openings during motor start-ups and transformer inrush currents.

Product Specification :

• Rated at 70 Amps, 600 VAC/600 VDC for high-power AC/DC circuit protection
• Interrupt rating of 200 Kilo-Amps AC and 20 Kilo-Amps DC for secure fault interruption
• Fiberglass body for durability and dimensional stability in harsh industrial environments
• Time-delay functionality to avoid tripping during motor start-ups and transformer inrushes
• UL listed, CE/CSA certified, with optional SmartSpot indicator and rejection-style design for safe and easy replacement
