A robust working gap and mounting versatility make the G.R.I. 4460 a top choice where good looks and adaptation to a rough environment are required.
The G.R.I. 4460 Series is a compact, nice looking and extremely rugged switch set offered with or without armored cable that looks like it belongs when installed and not added as an after thought.
The 4460 Series switch sets are resistant to nuisance vandalism and will blend in to the friendlier and more decorative atmosphere of today's institution whether it be health care or an educational facility.
A robust working gap and mounting versatility make the G.R.I. 4460 a top choice where good looks and adaptation to a rough environment are required.
APPLICATION:
The G.R.I. 4460 series of contacts are miniature, low profile, extruded aluminum switches intended for installations in commercial and industrial applications where a rugged, encapsulated wide gap contact is required. Ideal for institutional use such as hospitals, schools, minimum detention facilities, etc. The 4460 and 4460A both offer the installer a 1"+ working gap for loose fitting doors, gates, etc. Available in Closed Loop, Open Loop, SPDT and DPDT, this series of contacts can be purchased with 18" of jacketed wire leads or armored cable. Since the 4460 series is polarity sensitive, the poles are printed on the magnet case to indicate mounting direction. Mounting hardware and spacers provided with switch set. Optional S-44 mounting bracket sold separately.
What’s Included
- 4463A Magnetic Contact
- Mounting Hardware
- Spacers
Main Features
- Wide Gap Standard 1"+
- Miniature Size 1.5" L x 5/8" W
- Heavy Duty Extruded Aluminum
- Available with 18" Jacketed Or Armored Cable
- Closed Loop, Open Loop, SPDT
General Information

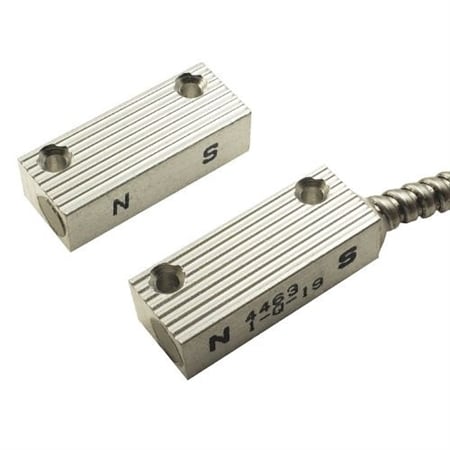

Name: GRI 4463A 4460 Series Miniature Commercial Surface Mount Switch Set, 1.5" x 5/8" W, 1" Standard Gap, 5W, 175VDC, 0.25 Amp, DPDT, X and 18" Armored Cable, Aluminum
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625043750
Country of Origin: United States.Country of origin is subject to change.
