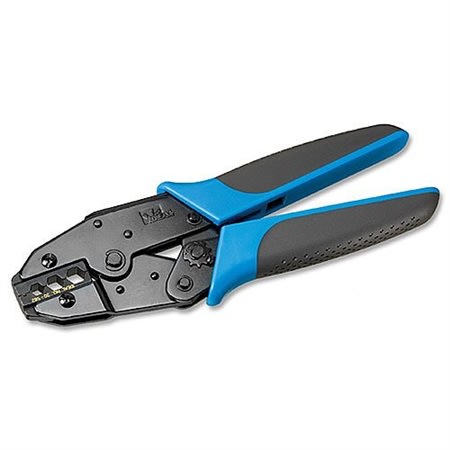

Ideal 30-503 Crimp Tool

The Crimpmaster ratcheting crimp tool is a versatile hand held tool that uses interchangeable die sets to crimp many types of connectors including RF, wire terminals, and modular plugs. 15+ die sets are available for the Crimpmaster. The tool is designed for heavy daily professional use. The thick walled frame is manufactured from fine blanked high carbon steel with a black oxide coating. Large contoured, rounded edge handles provide comfort and leverage during the crimping process. The Crimpmaster has a ratchet mechanism which prevents the user from under crimping a connector. The tool will not open, or release the connector being crimped until a full crimping cycle has been completed. The tool does have a ratchet release lever located between the handles to open the tool if a full cycle cannot be completed. The tool can be fine adjusted to die set variations with the 6 position cam wheel. Precision ground die sets can be changed with a flat or philips screwdriver. The Crimpmaster is a professional grade, general purpose crimping tool that requires no factory calibration. Heavy duty professional hand held ratcheting crimp tool Compatible with over 15 different die sets for RF connectors, wire terminals and modular plugs Provides a consistent crimp every time. Comfort grip contoured handles Dies change quickly with a screwdriver Adjustable cam for fine adjustments to the crimping cycle

Main Features

Crimpmaster tool plus die set for RG-59/6/6 Quad F-Type crimp connectors

3 cavity hex die: 0.350” (8.89 mm), 0.320” (8.13 mm), 0.255” (6.48 mm)

Use with IDEAL Crimp-on F connectors

Includes the 30-506 Crimpmaster™ frame

Die set also available individually (see part number 30-582)

General Information

Name: IDEAL 30-503 Crimpmaster Tool with CATV-F Die Set

Category: IDEAL Industries, Tools & Hardware, Tools, Crimping & Punch Down Tools

UPC Code: 783250305032

Country of Origin: Taiwan. Country of origin is subject to change.
