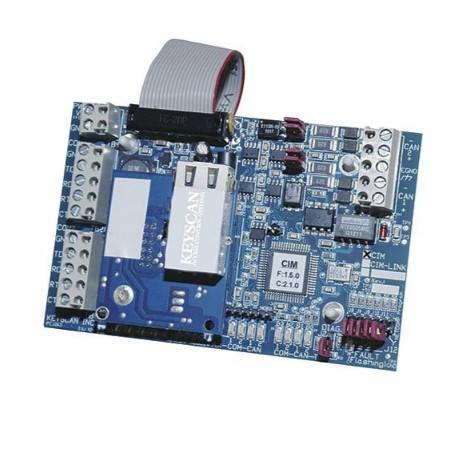

A new communication control module designed to use a CAN Bus communication network. The CIM provides optimized server to Access Control Unit (ACU) communication giving users an ACU to ACU network providing inter-panel communication for global functions. The CIM also includes enhanced device-based diagnostics and improved communication speeds.
Main Features
- Communication module provides both global communications and ACU to PC communications for two or more ACUs on same communication loop; Comes with ribbon cable
- Requires Rev 11, PC101x or PC109x ACU boards with minimum of v 7.40/8.20 firmware
- One module required for each ACU; Powered by ACU p/s (150mA)
- Optional NETCOM2P/6P can be mounted directly on this board
General Information
Name: Keyscan CIM Communications Interlink Module Access Panel Accessory
Category: Keyscan by dormakaba, Access Control, Access Control Panels & Accessories, Control Panel Modules
UPC Code: 800168004632
Country of Origin: Canada. Country of origin is subject to change.
