The M8 smart power controller communicates with an NL4 or NLX network module and provides eight (8) monitored and controlled voltage outputs accessible from a network or the internet. Optional RS485 connection for remote monitoring by NLX using RSMOD (not included). The M8 provides eight (8) control INPUTS capable of voltage or dry contact activation and eight (8) controlled and monitored OUTPUTS, with each output network programmable for fail-safe, fail-secure, fire alarm over ride, and AC loss over ride for egress lock control. Each output is also programmable to either of two voltages available when used in a dual voltage iSCAN power system. OutSmart dual color LEDs visually indicate voltage levels by output (Green for 12V, Blue for 24V). One output is selectable as a network controllable dry relay output. Each output may also be individually enabled/disabled through a browser interface and the voltage and current of each output may be monitored via network or internet, and trigger points may be set up on each output to generate an alert when that output is outside of selected parameters.
Main Features
Comprehensive output zone control
Provides installer selectable output voltage, when used in a dual voltage system
Visual Voltage Verification - Output LED changes color based on voltage setting (12V/Green, 24V/Blue)
Dual voltage buss and prewired cables connect the M8 to the power supply or additional accessory modules
Fiberglass PCB for improved environmental performance, high efficiency operation
RoHS compliant
General Information

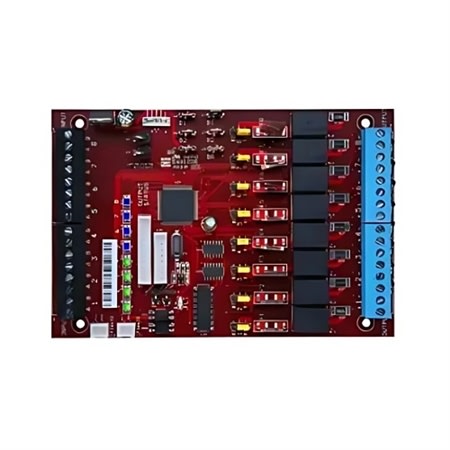

Name: LifeSafety Power M8P-BOXED Managed Lock Control 8-Output Module, 2.5A
Category: LifeSafety Power, Batteries & Power Supplies, Power Management, Power Distribution Modules
UPC Code: 8100049114969
Country of Origin: Philippines. Country of origin is subject to change.
