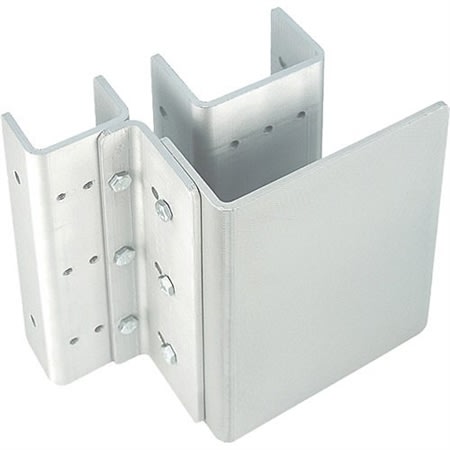

The Flex Mount Bracket System is an intuitive set of mounting brackets designed exclusively for use with the 1200 lb.holding force M62FG-SASM Gate Magnalock? and the 2000 lb. holding force GL1 Gate Lock. Using pre-formed post channels and plates of varying lengths, a professional looking high security gate lock mounting platform can be assembled in minutes without special tools.
Post Shim Brackets are used to adapt both small and large Post Brackets to pole/post sizes smaller than 2" or 3" respectively in 1/8" increments - 1-7/8", 1-3/4", 1-5/8" 2-7/8", 2-3/4", 2-5/8", etc.
When more than two shims are used together on a single post, welding the bracket to the pole/post is recommended. All necessary mounting hardware including four Post Shims is included with each Flex-Mount Kit.
FMK-SW will function with either M62FG or the GL1 where post separation is between 1" and 2-3/4"
Product Specification :
- Permits electronics to be mounted on fence posts or gate posts
- Brackets are reversible
- Bracket kits include brackets, mounting hardware and post shims
- Zinc-plated steel provides durability and long life
- Bolt on or weld for installation
- Compatible with maximum 3" round post with minimum pole separation of 1"
