L-Series Sounder Strobes are listed to UL 1971 and UL 464 for public mode evacuation. The full candela strobe offering provides the high candela settings for the ADA compliant sleeping spaces. The lower candela settings provide flexibility and optimize the current draw for other application, like nursing home applications. System Sensor L-Series audible visible notification products are rich with features guaranteed to maximize profits with lower current draw and modern aesthetics.
Main Features
Plug-in design with minimal intrusion into the back box
Compatible with MDL3 sync module
Updated modern aesthetics
Field-selectable candela settings. Wall units: 15, 30, 75, 95, 110, 135, and 185. Ceiling units: 15, 30, 75, 95, 115, 150, and 177
Rotary switch for High/Low, Temp3, Temp4, and Continuous settings. Sounder-only models also offer a Coded setting.
Mounting plate shorting spring checks wiring continuity before device installation
Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices (Direct replacement for HW/R-LF and P2R/WH-LF)
Sounders listed for ceiling and wall
General Information

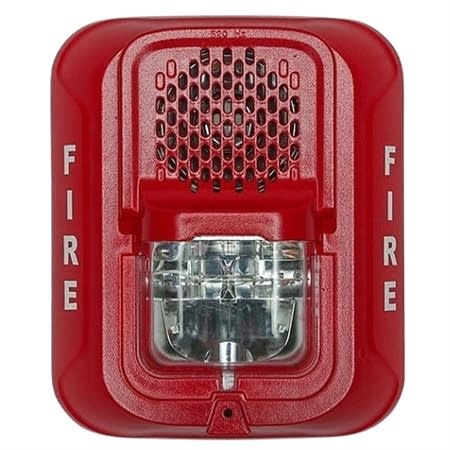

Name: System Sensor P2RL-LF L-Series Indoor Selectable Output Low Frequency Sounder Strobe, 2-Wire, Wall Mount, "FIRE" Marking, Red (Replaces P2RH-LF)
Category: System Sensor, Fire, Fire Notification Appliances, Sounder Strobes
UPC Code: 783863054679
Country of Origin: Mexico. Country of origin is subject to change.
